Fiat Emblem (Red, with Mount)

Description

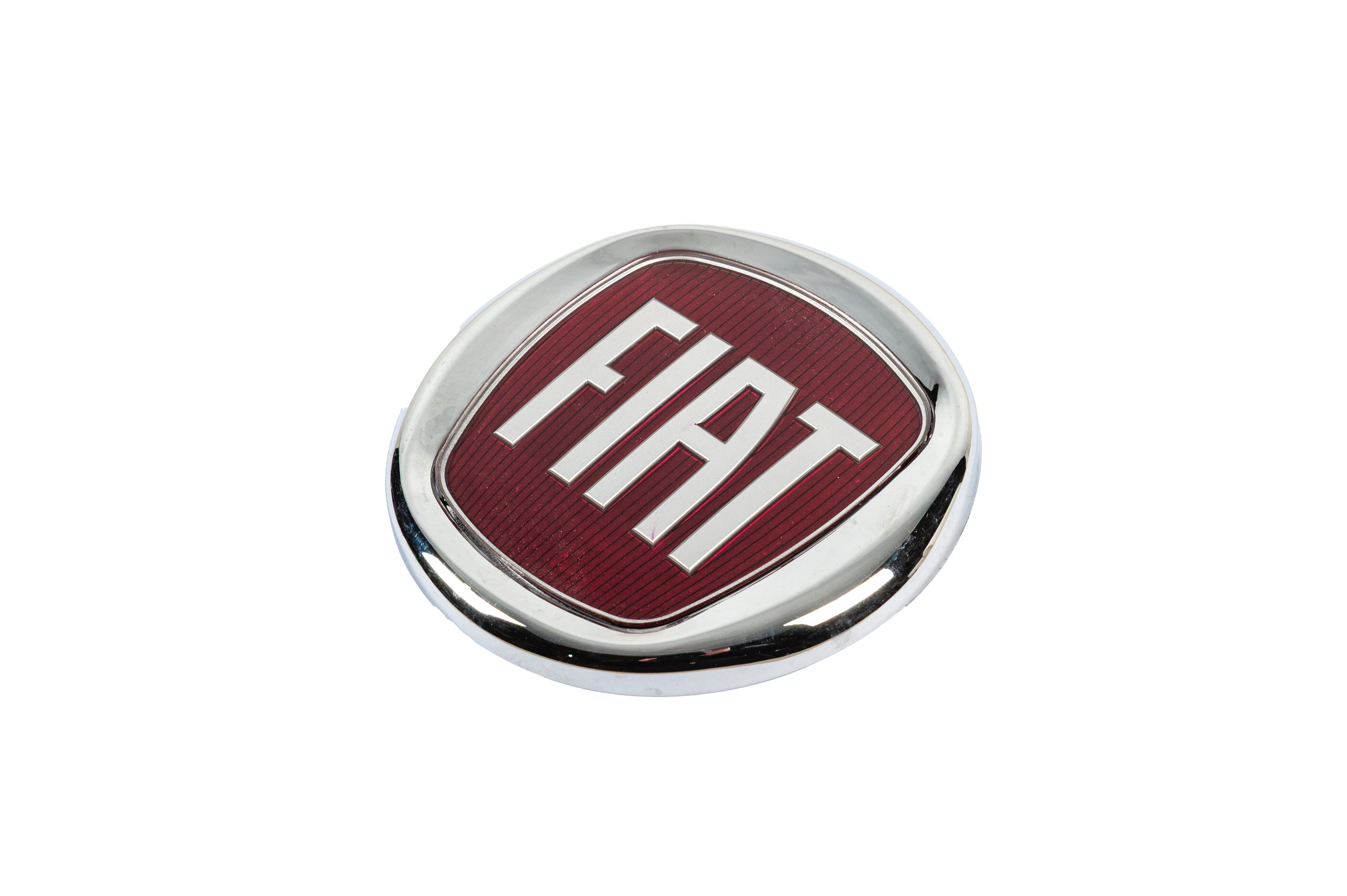

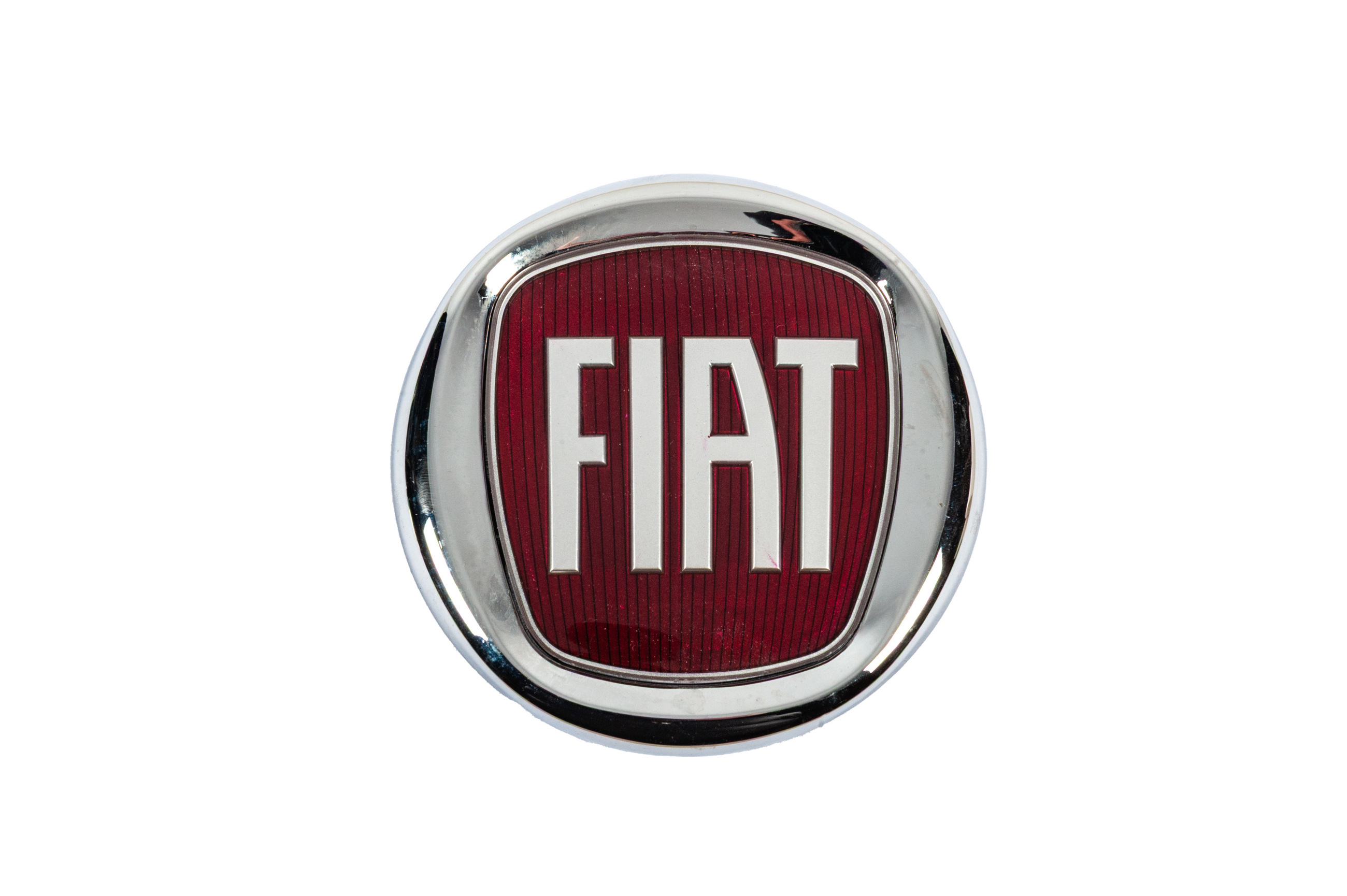

Red Fiat emblem with mounting by Davs Auto — a badge in the modern Fiat style: a red field with white FIAT lettering in a chrome surround, size 120 mm. Made of ABS plastic; on the back there are two pins for fixing; installation type — into the factory mounting points, product type — limited universal, meaning it is selected not by model but by the size and mounting of the factory badge.

What the “120 mm” parameter means

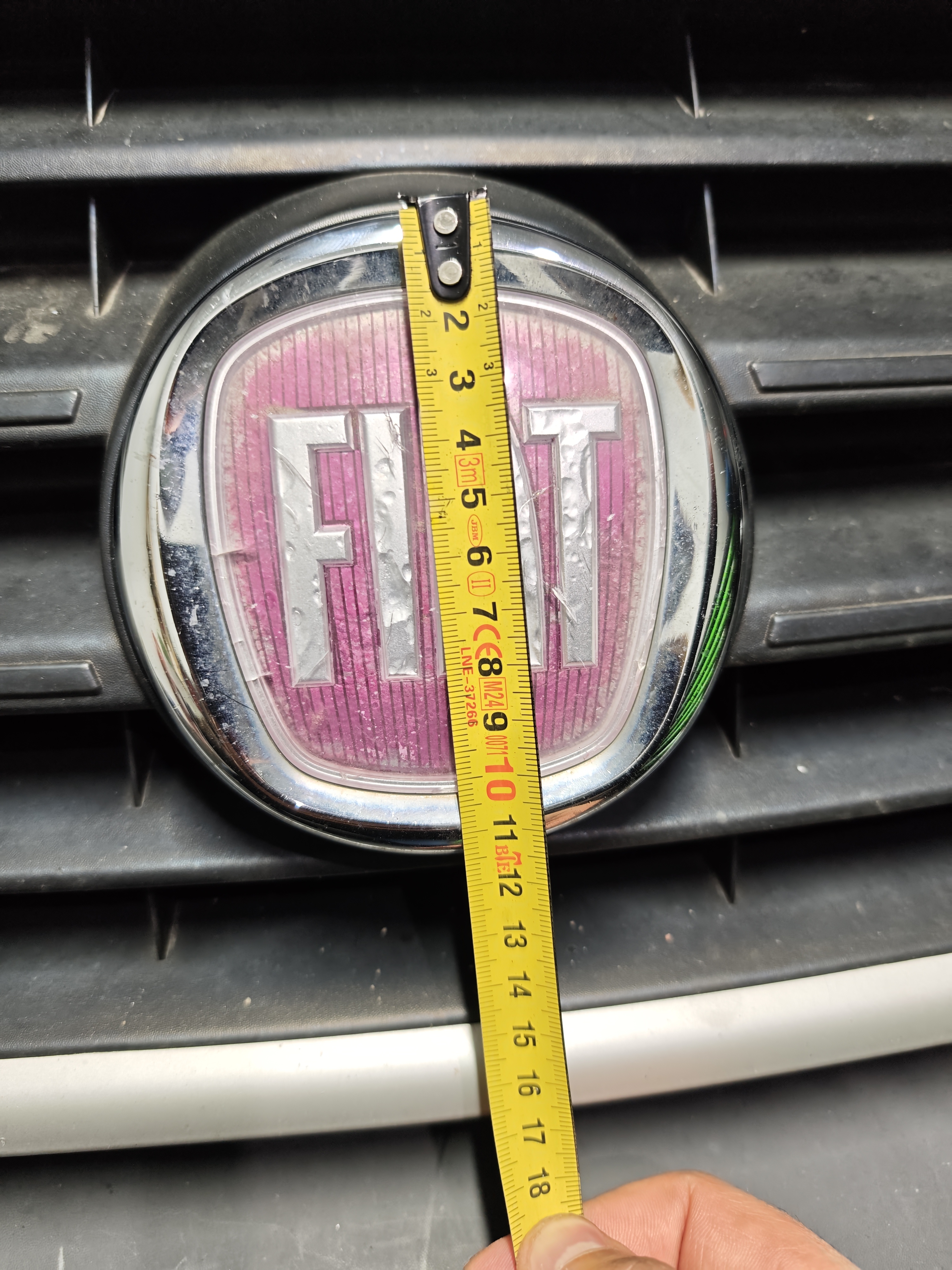

On the product page, the item is sold in the 120 mm variant — this is the size of the emblem together with the chrome surround. Price and availability are visible after selecting the variant. Before ordering, measure the factory badge on your Fiat:

1. Outer size from edge to edge including the surround, not only the red center. The badge is close to a circle in shape, so measure both horizontally and vertically.
2. Distance between the pins (or the holes for them) on the back of the old emblem or at the installation point — it must match the new one.
3. Installation location: front grille, trunk lid, or rear doors. Front and rear badges on the same car are often different sizes, so they are selected separately.

What the emblem looks like and what it is made of

• Design: red field, white FIAT letters, wide chrome surround.
• Material: ABS plastic.

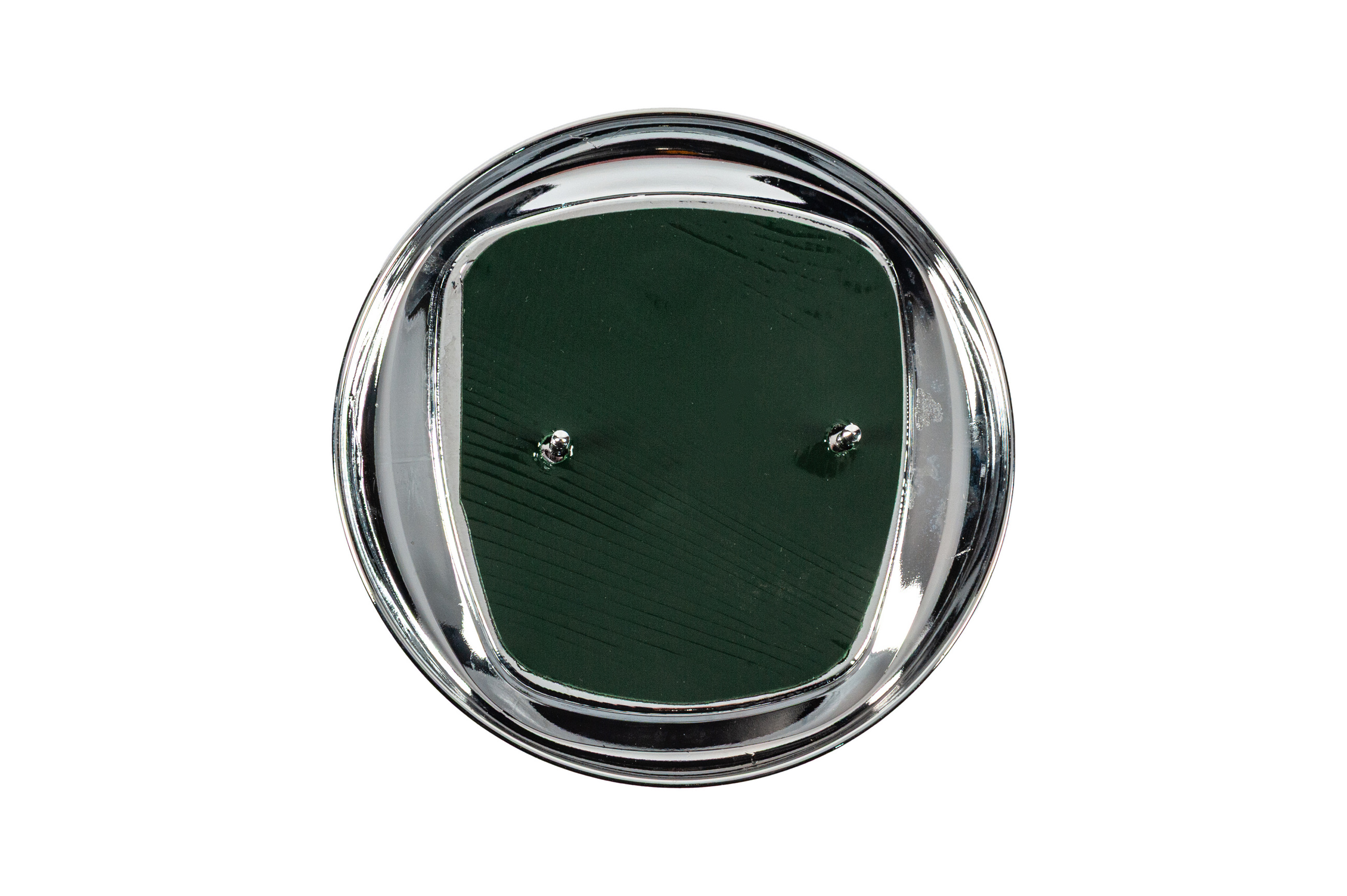

• Mounting: two pins on the back.
• Manufacturer: Davs Auto, Turkey.
• Package contents: per the product photo — emblem.

This is not an original Fiat part, but a non-original badge in the brand’s signature style, so rely on measurements rather than the model name or VIN.

How to install the emblem

Carefully remove the old badge without damaging the paintwork, clean and degrease the area. Test-fit the new emblem: the pins should go into the holes without force, and the base should sit tightly against the surface. A flat, rigid emblem may not sit properly on a heavily curved surface, so test-fit before final fixing. Cutting off the pins to glue the badge on is not recommended: that is already a modification, after which the old holes remain. Once the badge is in place, check that it sits straight and does not wobble. Wash it with a soft sponge, without hard brushes and abrasive pastes, so as not to scratch the chrome surround.

What other Fiat emblems are available in the catalog

If the factory badge on your vehicle is mounted differently, take a look at the red self-adhesive Fiat emblem or the red Fiat emblem on pins with clips. All badges for the brand are collected in the Fiat badges section, and the rest of the accessories are on the Fiat tuning page.
