Vibration absorbers Ultimate and their characteristics

We continue to acquaint you with vibration isolation materials from various manufacturers. In this article, we bring to your attention several materials from Ultimate. If you want to learn about other materials, then it will be useful to familiarize yourself with such publications: Acquaintance with Shumoff Noise Isolation and Ultimate Noise Isolation and characteristics . You can see our range of products here .

Characteristics of the material Construct A

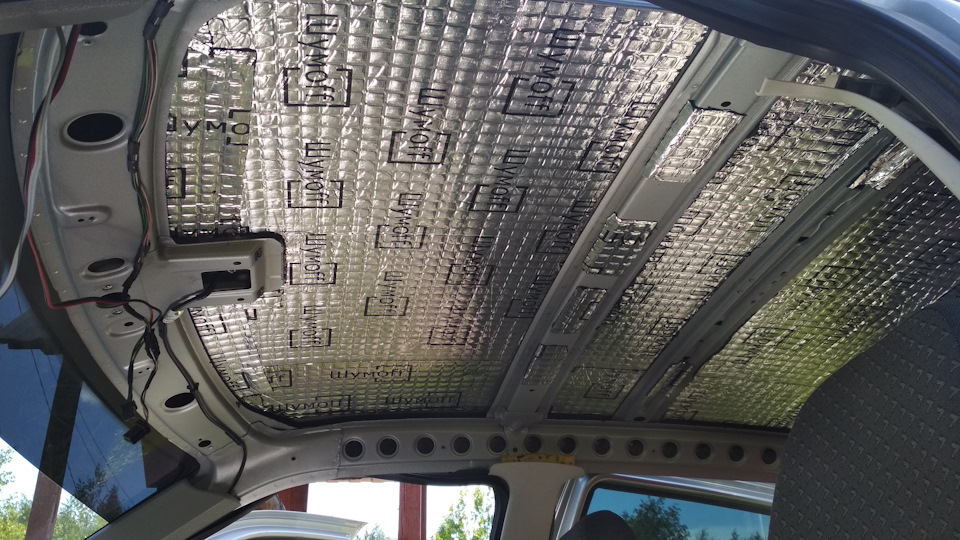

Construct A is based on polymer rubber and contains a foil relief layer. It is used mainly in such parts of the body as: roof, floor, trunk, doors, motor shield.

• Sheet size - 750x500 mm.
• Thickness - 1.7 mm or 2.3 mm, or 3 mm.
• KMP (mechanical loss factor) - 0.25 units, 0.3 units and 0.36 units.
• Weight - 2.7 kg/m2, 3.5 kg/m2 and 4.2 kg/m2.
• Operating temperature range – -40—+100о C.

Material characteristics of Construct Block 3 and Construct Block 4

Construct Block 3 and Construct Block 4 are similar materials based on modified bitumen. The adhesive layer is a rubber mastic. The difference in materials is that Block 4 contains a foil layer, the thickness of which is 100 microns.

• KMP - Block 3 -0.35 units, Block 4 -0.45 units.
• Sheet size -370x500 mm.
• Thickness - Block 3 -3 mm, Block 4 -3.5 mm.

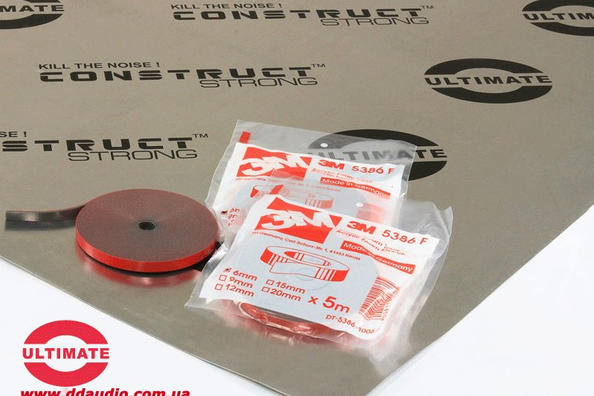

Characteristics of Construct Strong

It is also a sheet material consisting of a high-viscosity type of aluminium. Well suited for machining curved surfaces and creating rigid structures. Thickness - 1.5 mm.
